Mini Excavator / U10
U10
Big Performance.Small Footprint.

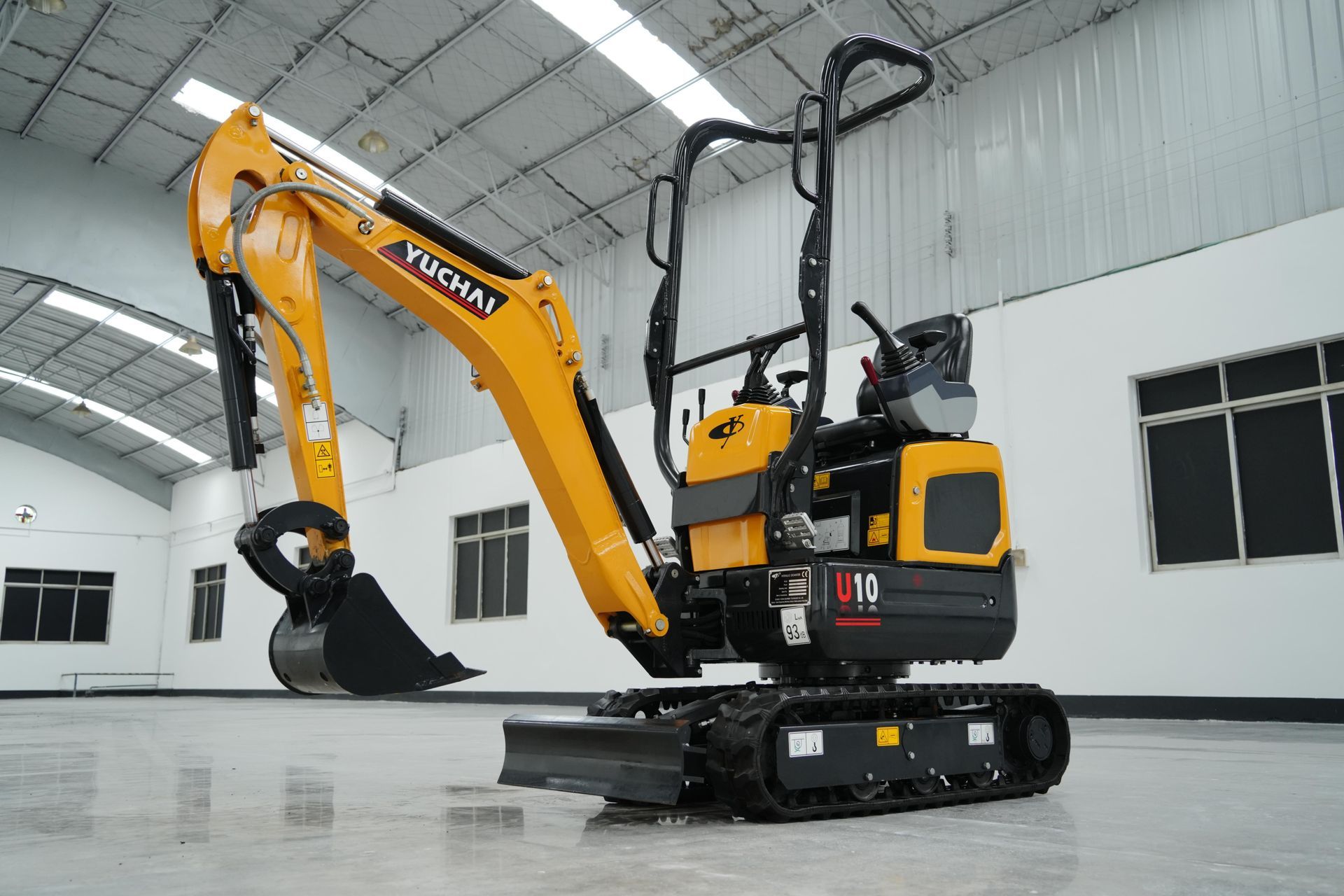

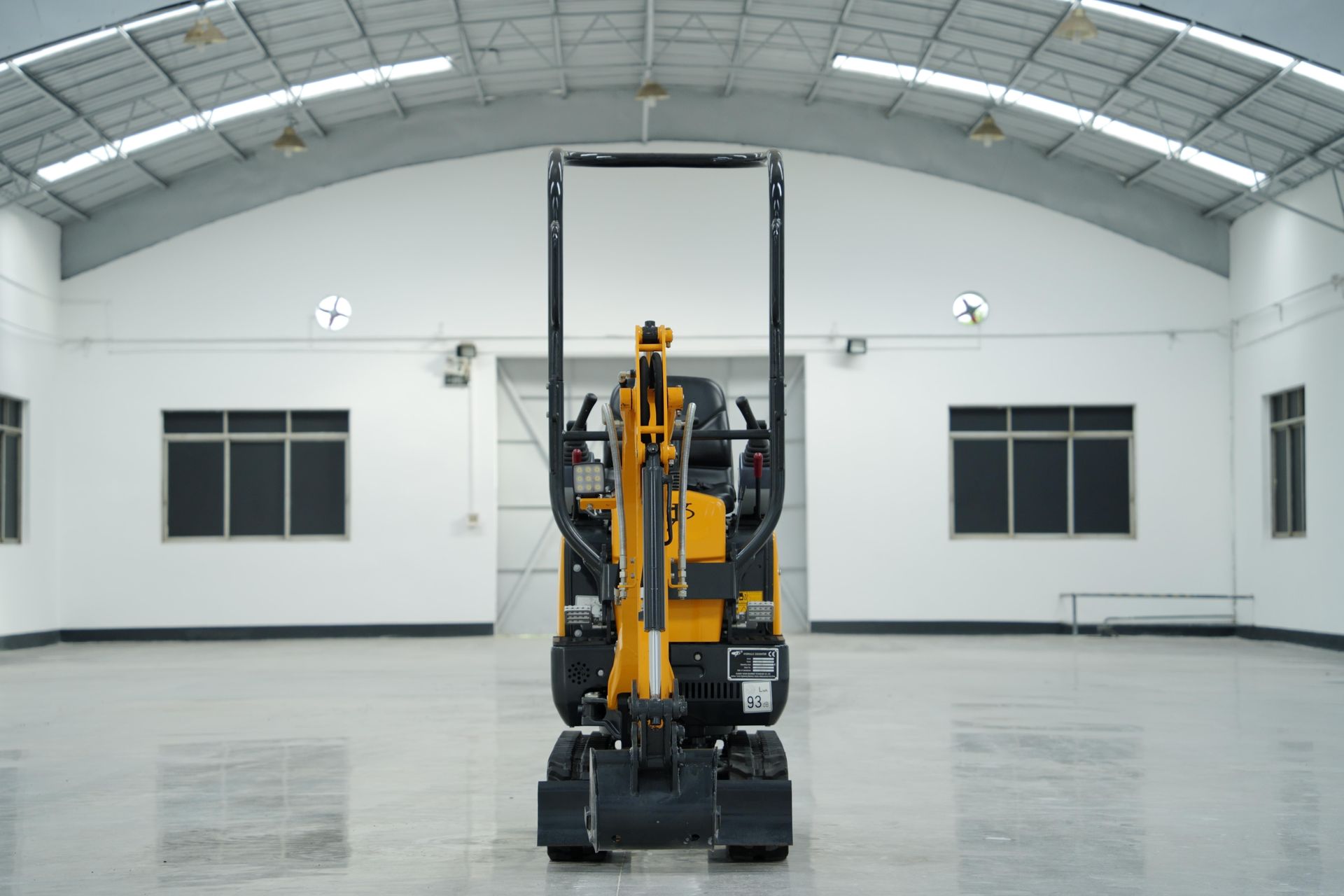

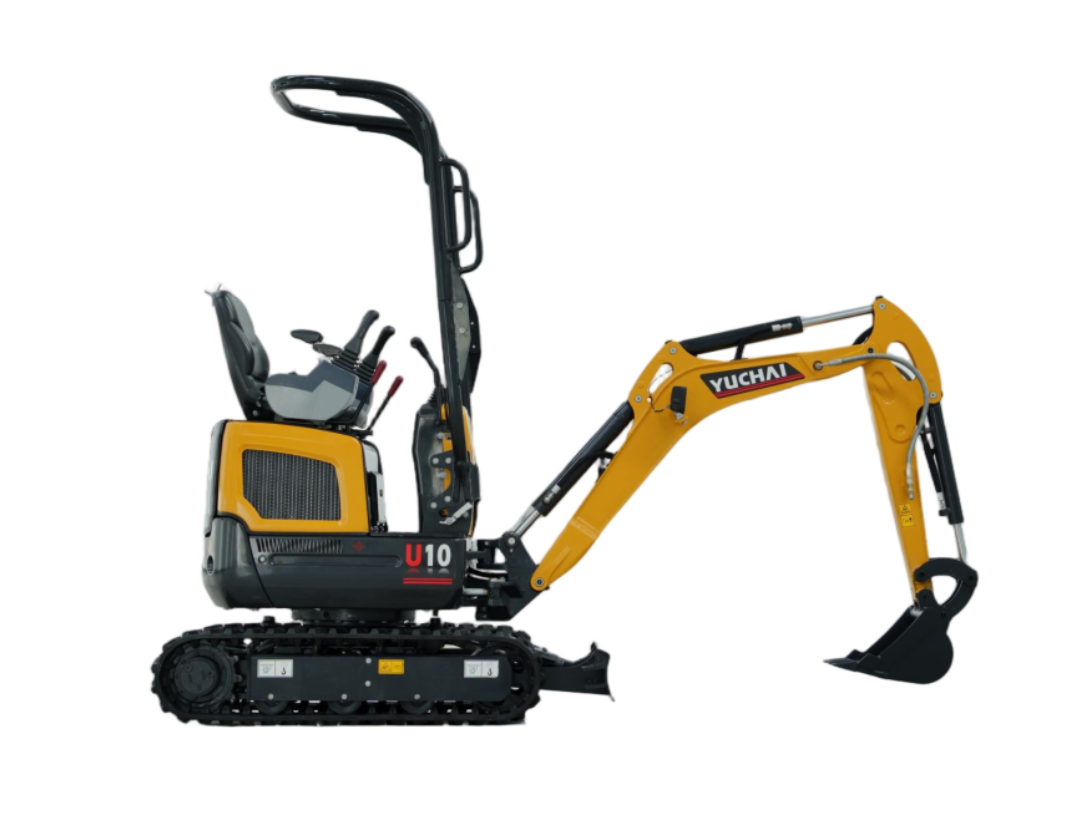

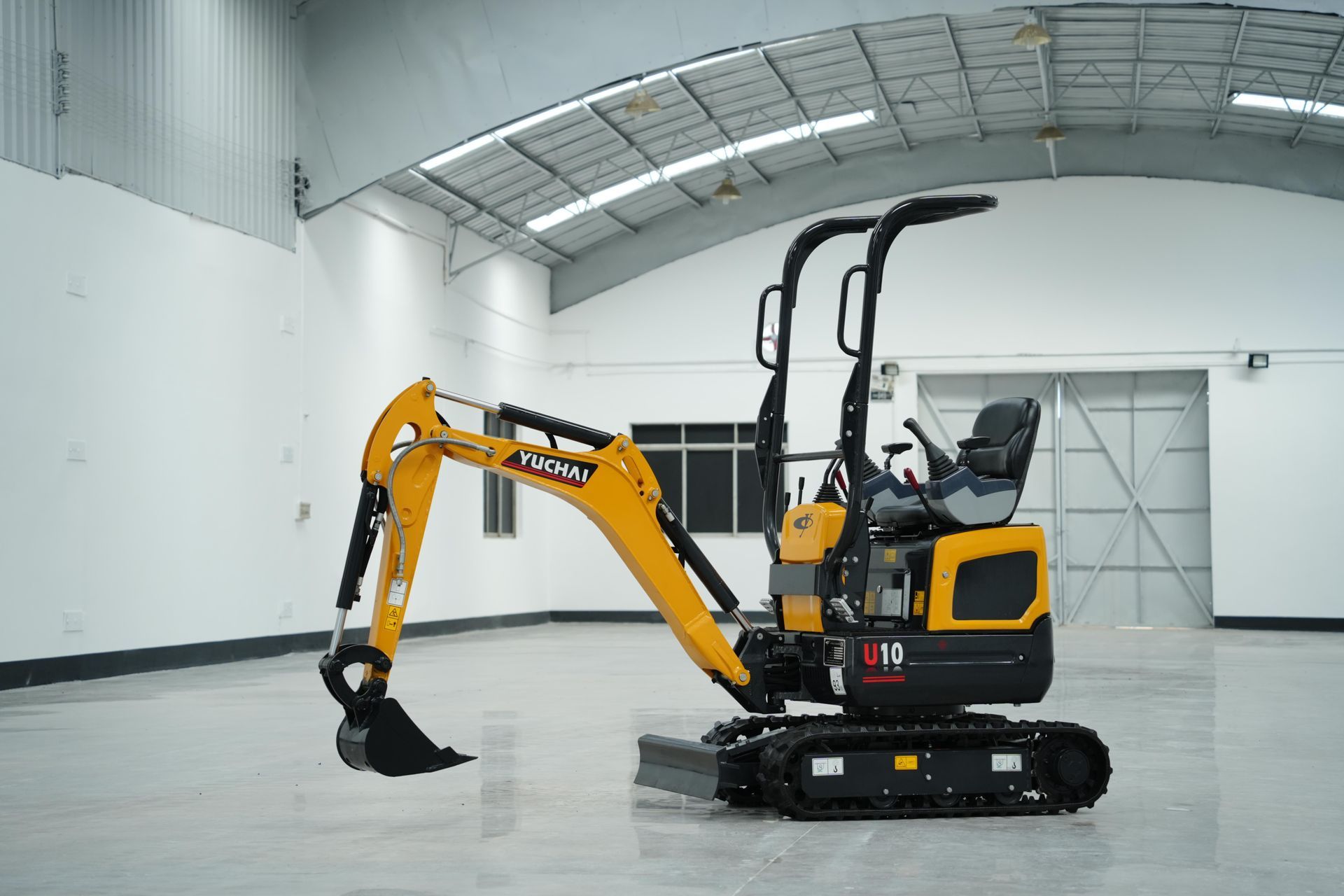

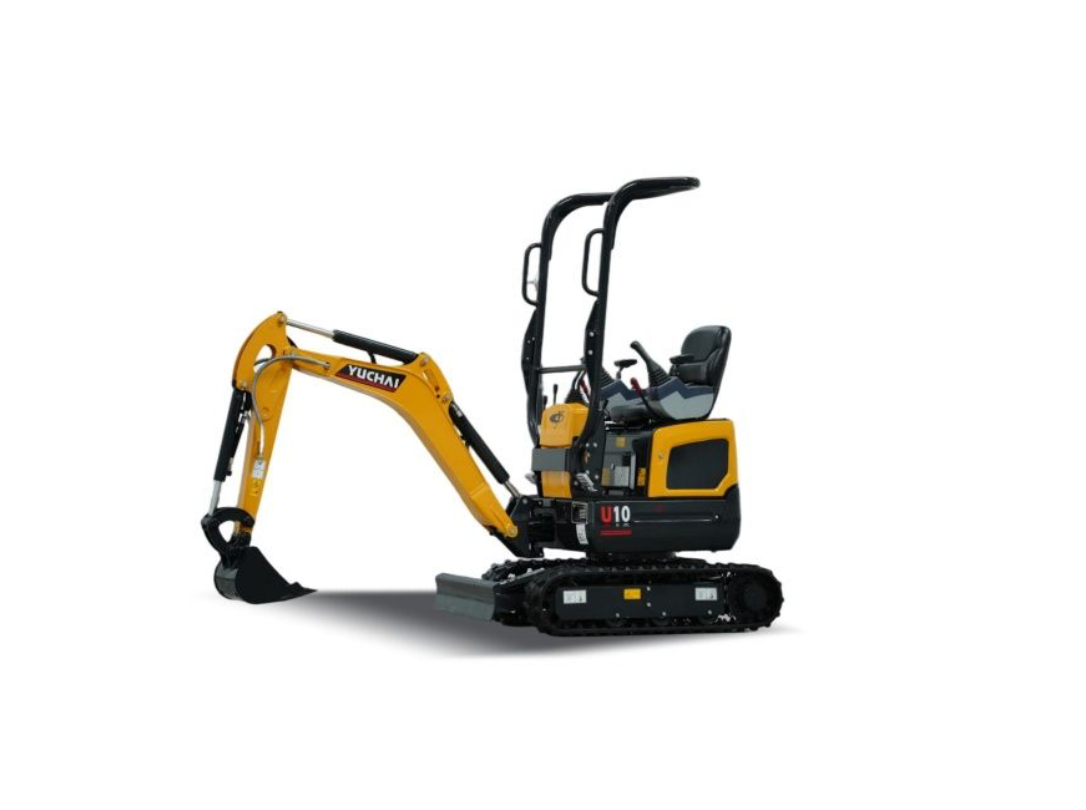

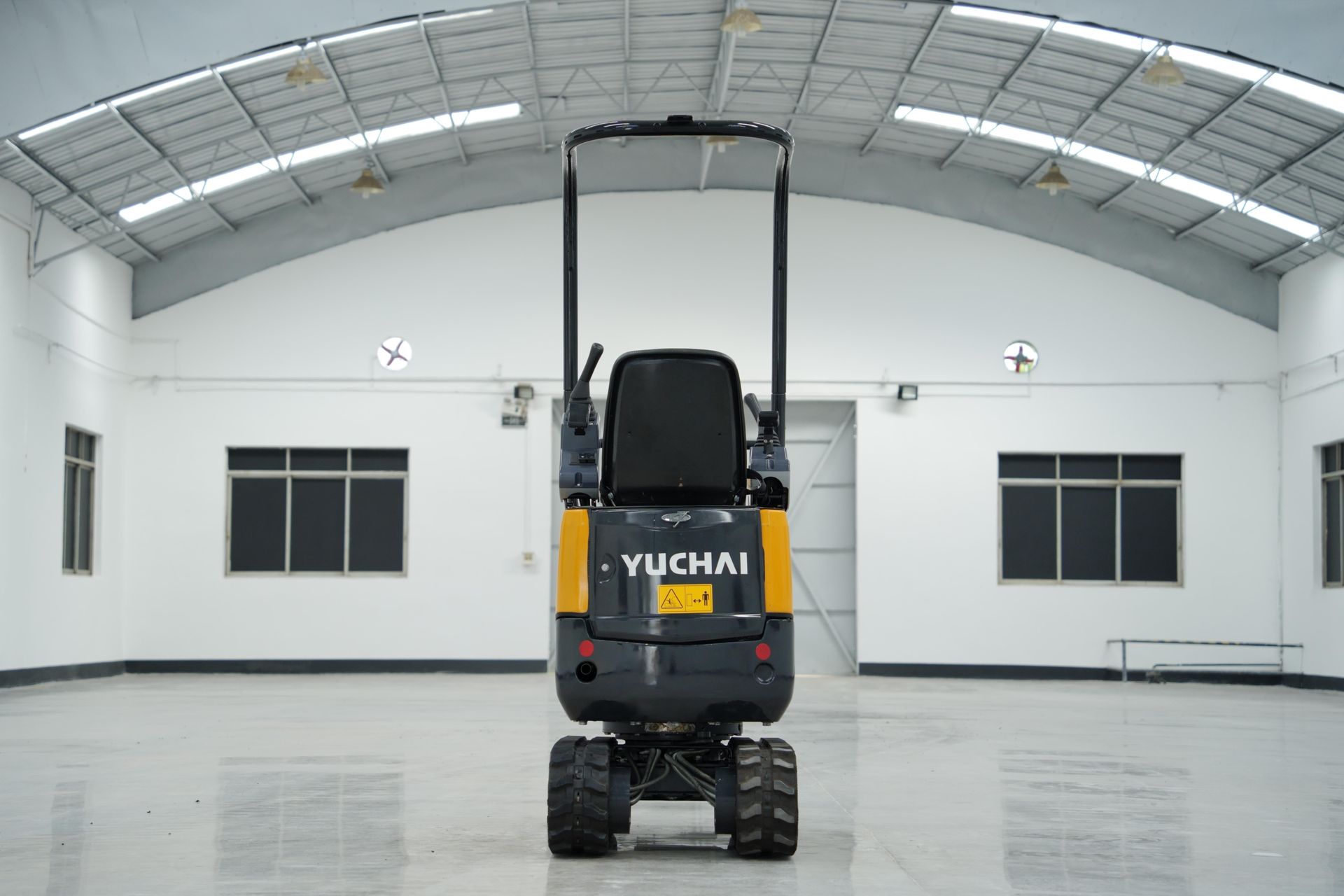

Built for tight access and compact jobsites, the Yuchai U10 combines a narrow working footprint with serious digging capability, strong bucket force and attachment-ready hydraulics.
U10 / Overview
Compact Where Access Matters.Capable Where the Work Starts.
The U10 is designed for jobs where space is limited but performance still matters. Its compact dimensions make it suitable for narrow access areas, landscaping, property work, utilities and smaller construction sites. A telescopic undercarriage allows the machine to maintain a narrow footprint for access while providing additional working width when required.
01 / ACCESS
2.5 FTMinimum WidthWith a minimum machine width of approximately 2.5 ft, the U10 is designed for restricted work areas where larger machines simply cannot operate. Narrow for access. Wider when the job requires additional working stance.
- Retracted width
- 2.5 ft / 30 in
- Expanded width
- ~3.2 ft / 38 in
02 / DIGGING
6.5 FTMax Dig DepthDespite its compact footprint, the U10 delivers useful digging geometry and breakout force for trenching, landscaping, utilities and property work.
- Max digging radius
- 11.3 ft
- Bucket digging force
- 2,338 lbf
- Arm digging force
- 1,214 lbf
03 / VERSATILITY
2,494AUX1 Pressure (PSI)Auxiliary hydraulics expand the U10 beyond standard digging work. Connect compatible tools for breaking, drilling and material handling while keeping one compact carrier at the centre of the job.
- AUX1 flow
- 21 L/min (~5.5 GPM)
- Hydraulic hammer
- Compatible
- Auger / Thumb
- Compatible
06 / Performance
Compact Machine.Purpose-Built Performance.
Specifications subject to change. Verify with your Yuchai Prairie dealer for current production data.
Engine
- Model
- Kubota D722
- Emission Standard
- Euro V / EPA Tier 4 Final / CN IV
- Engine Power
- 13.6 hp @ 2,500 rpm
Performance
- Arm Digging Force
- 1,214 lbf
- Bucket Digging Force
- 2,338 lbf
- Max Hauling Force
- 5,058 lbf
- Gradeability
- 30 deg
- Travel Speed (hi/lo)
- 1.9 / 0.9 mph
- Platform Slewing Speed
- 7.5-8.5 rpm
Hydraulics
- Working Pressure
- 2,494 psi
- AUX1 Pressure
- 2,494 psi
- AUX1 Flow
- ~5.5 gpm
Capacities
- Operating Weight
- 2,315 lb
- Fuel Tank
- 2.9 gal
- Hydraulic Oil Tank
- 3.2 gal
Digging Reach
- Max Digging Depth
- 6.5 ft
- Max Digging Radius
- 11.3 ft
- Max Digging Height
- 10 ft
- Max Dumping Height
- 7 ft
- Max Reach at Ground
- 11.2 ft
- Min Slewing Radius
- 4.5 ft
Lifting Capacity - View Chart
Contact Yuchai Prairie for the current lifting-capacity chart for this model and configuration.
Equipment & Configuration
Available equipment and configurations vary by production date and market. Confirm the required setup with your dealer.
05 / Dimensions
Compact by Design.
The U10 keeps transport and access dimensions practical while maintaining the working geometry required for real tasks.
- Overall Length
- 10 ft
- Overall Width (retracted)
- 2.5 ft / 30 in
- Overall Width (expanded)
- ~3.2 ft / 38 in
- Overall Height
- 7.5 ft
- Track Length
- 5 ft
- Track Width
- 0.5 ft / 6 in
- Track Gauge (retracted)
- 1.8 ft
- Track Gauge (expanded)
- 2.6 ft
- Length to Center of Rollers
- 3.4 ft
- Ground Clearance
- 0.5 ft / 6 in
